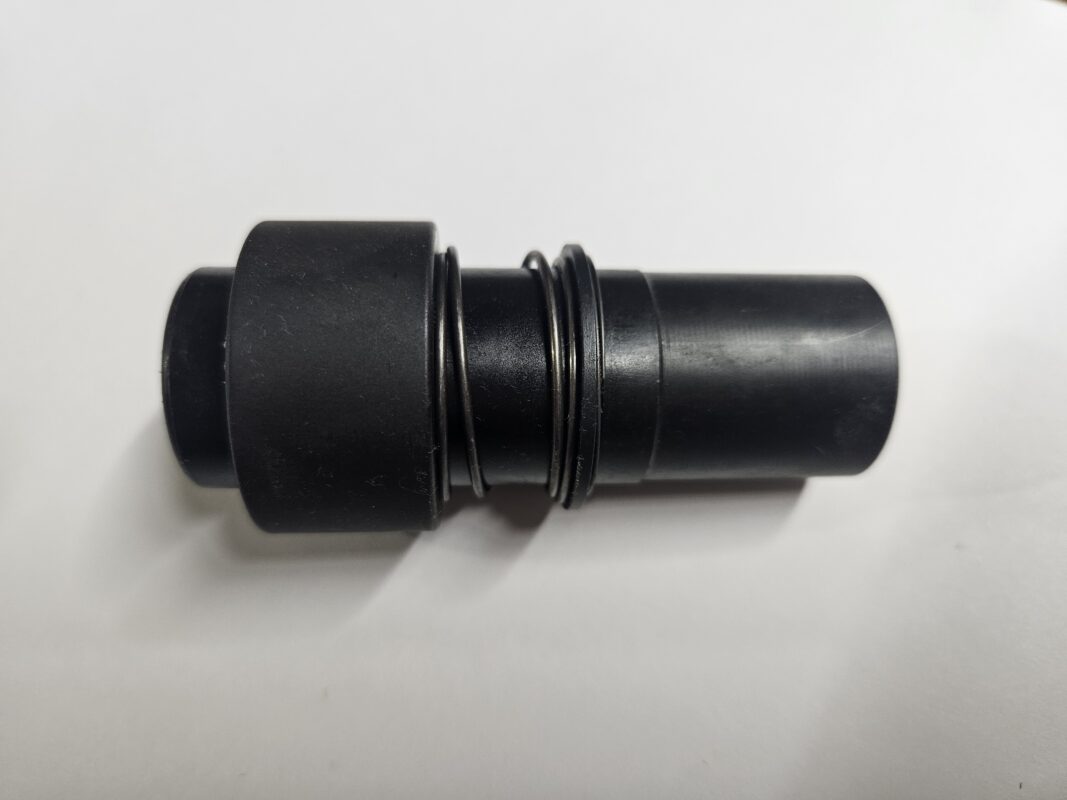

Threaded Magic Chucks Anchor
Threaded Magic Chucks
| Part Number | O.D. | O.A.L. | Int. Thread Tap | Stock |
|---|---|---|---|---|
| 63784 | 1.36 in | 2 15/16 in | 3/4–16 | x |
Magic Chuck & Collets “With Easy Entry”

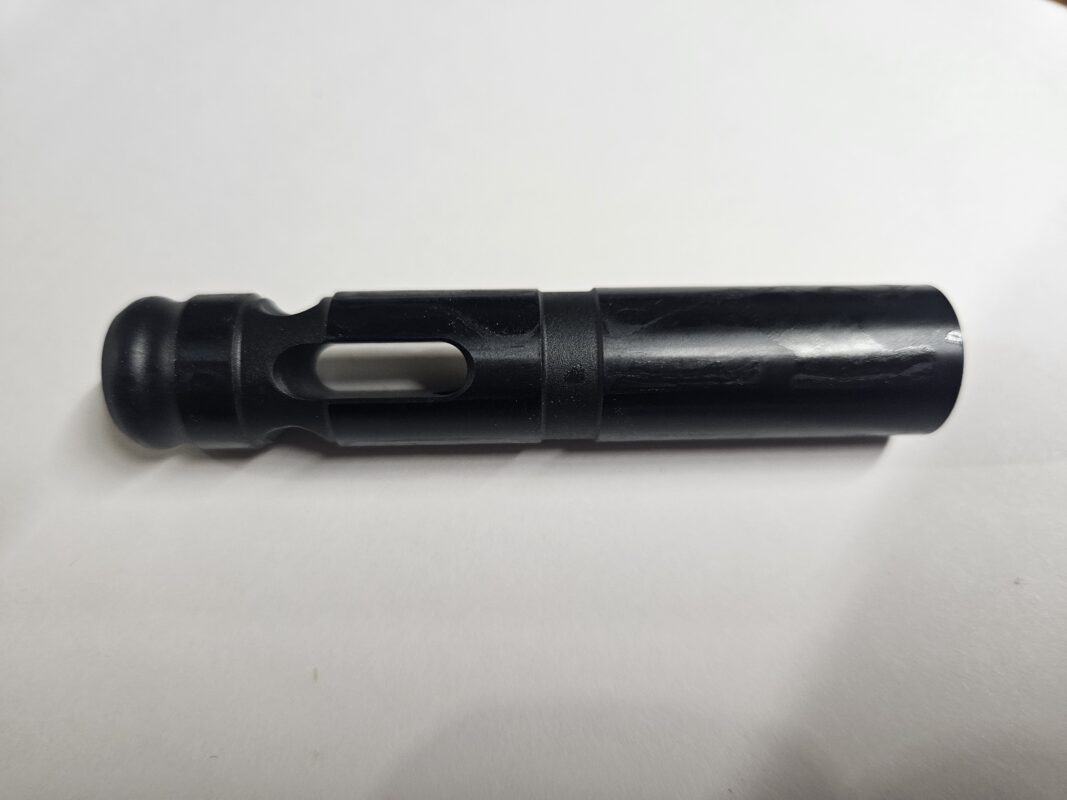

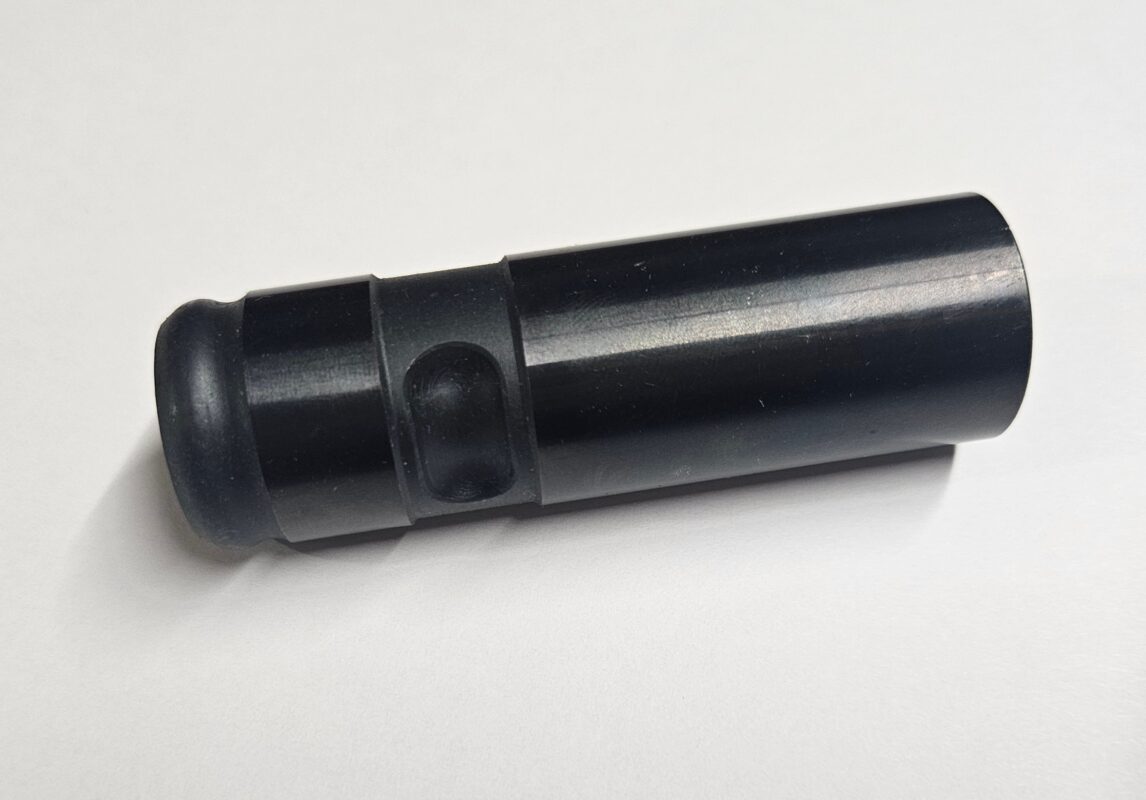

Threaded Magic Chucks | Vertical Spindles | Blank Collets “With Easy Entry” | Safety-Guard Collets “With Easy Entry” | Standard AA Collets “With Easy Entry”

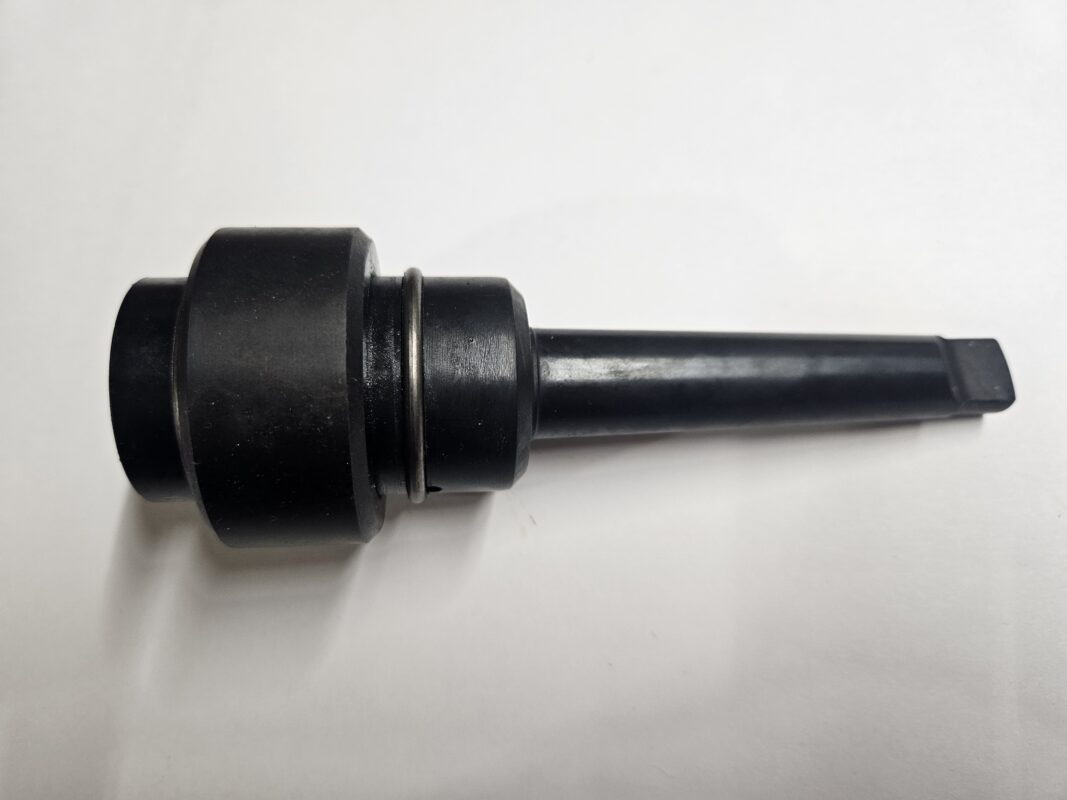

Vertical Spindles Anchor
Vertical Spindles
| Part Number | Chuck Size | MT | Collet Dia. | Dia. | Proj. C | Stock |
|---|---|---|---|---|---|---|
| 63712 | #1 | #1 | 15/16 in | 2 1/4 in | 2 11/16 in | x |
| 63713 | #1 | #3 | 15/16 in | 2 1/4 in | 2 11/16 in | x |
| 63722 | #2 | #2 | 1 1/4 in | 3 1/8 in | 3 5/8 in | x |
| 63723 | #2 | #3 | 1 1/4 in | 3 1/8 in | 3 5/8 in | x |
| 63724 | #2 | #4 | 1 1/4 in | 3 1/8 in | 3 5/8 in | x |
| 63733 | #3 | #3 | 1 11/16 in | 3 13/16 in | 4 7/16 in | x |
| 63734 | #3 | #4 | 1 11/16 in | 3 13/16 in | 4 7/16 in | x |
| 63735 | #3 | #5 | 1 11/16 in | 3 13/16 in | 4 7/16 in | x |
| 63744 | #4 | #4 | 2 3/8 in | 4 1/2 in | 5 in | x |
| 63745 | #4 | #5 | 2 3/8 in | 4 1/2 in | 5 in | x |

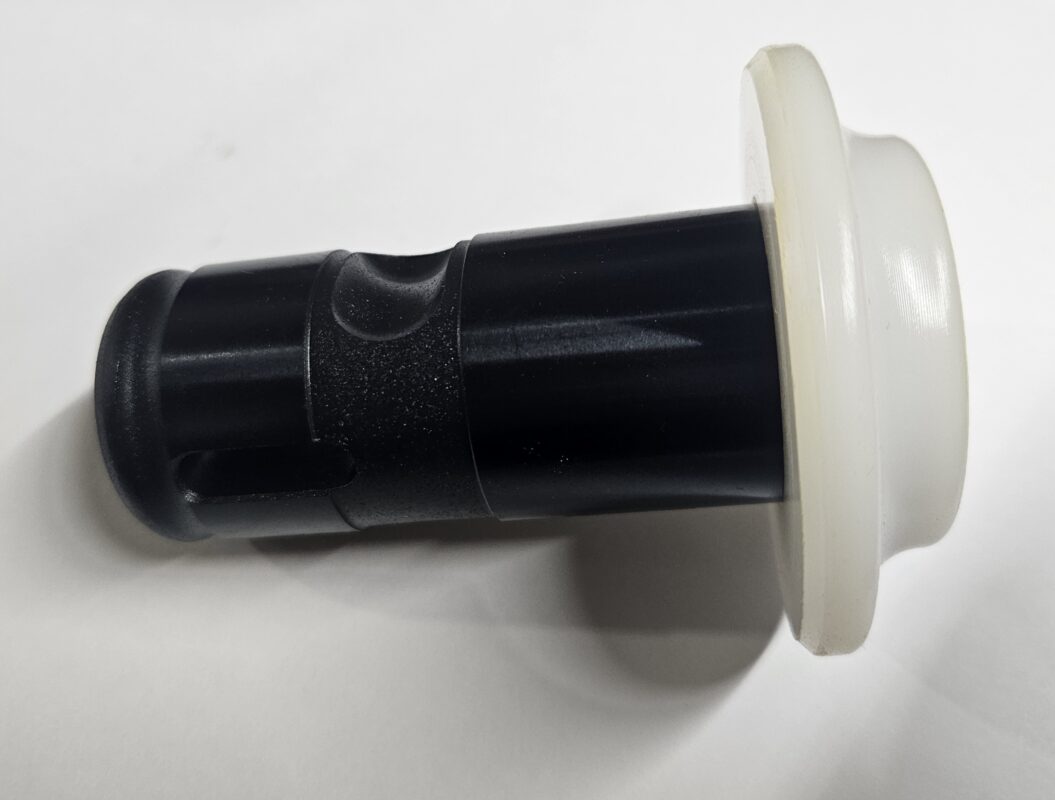

Safety-Guard Collets Anchor
Lorem ipsum dolor sit amet...
| Part Number | MT Hole Size | Chuck Size | Dia. | Stock |
|---|---|---|---|---|
| 64121 | #1 | #2 | 1 1/4 in | x |
| 64122 | #2 | #2 | 1 1/4 in | x |
| 64123 | #3 | #2 | 1 1/4 in | x |
| 64131 | #1 | #3 | 1 11/16 in | x |
| 64132 | #2 | #3 | 1 11/16 in | x |
| 64133 | #3 | #3 | 1 11/16 in | x |
| 64134 | #4 | #3 | 1 11/16 in | x |
| 64141 | #1 | #4 | 2 3/8 in | x |
| 64142 | #2 | #4 | 2 3/8 in | x |
| 64143 | #3 | #4 | 2 3/8 in | x |
| 64144 | #4 | #4 | 2 3/8 in | x |
| 64145 | #5 | #4 | 2 3/8 in | x |
