Back Up Screws Anchor

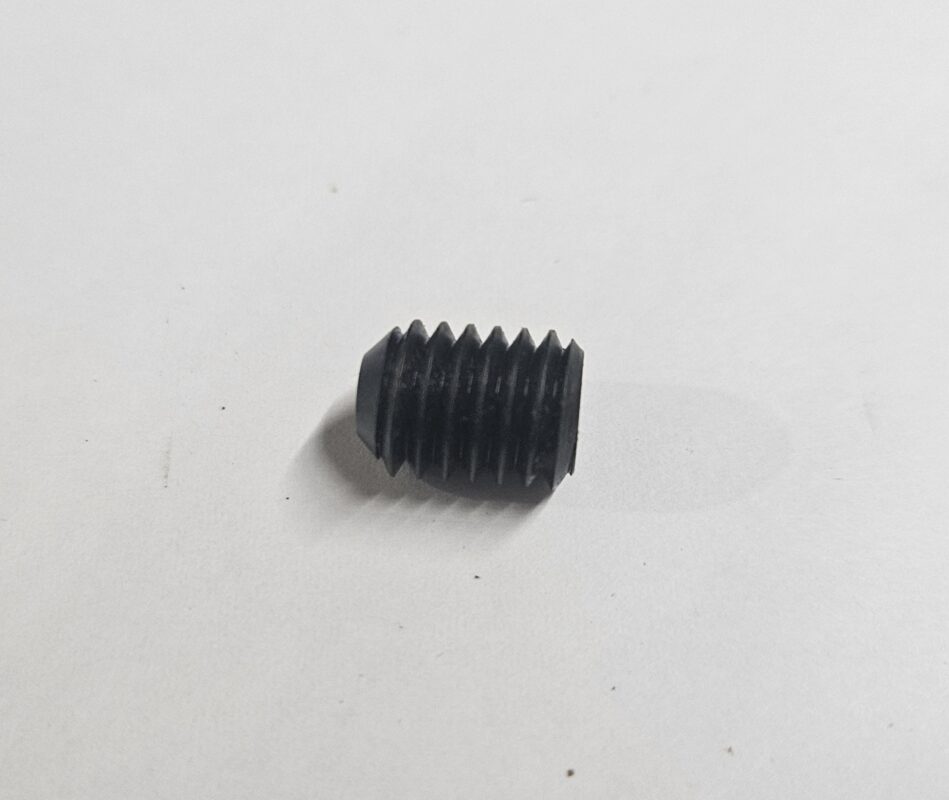

Back-Up Screw
| Part Number |
Thread Size |
Stock |
| 64921 |
3/8–16 |
x |
End Mill Holder Set Screws
| Part Number |
O.A.L. |
Hex. X DP |
Thread Size |
Stock |
| 64842 |
3/8 in |
7/32 in |
7/16–20 |
x |
| 64843 |
1/2 in |
1/4 in |
9/16–18 |
x |
| 64844 |
1/2 in |
5/16 in |
5/8–18 |
x |
| 64845 |
5/8 in |
3/8 in |
3/4–16 |
x |
| 64846 |
7/8 in |
1/2 in |
1–14 |
x |
Shell Mill Holder Arbor Screws
| Part Number |
Pilot Dia. |
Head Dia. |
Head Height |
O.A.L. |
Thread Unified |
Nex. X DP |
Stock |
| 64830 |
1/2 in |
21/32 in |
2/8 in |
1 in |
1/4–28 in |
3/16 x 3/16 in |
x |
| 64831 |
3/4 in |
7/8 in |
3/8 in |
1 1/16 in |
3/8–24 in |
1/4 x 1/4 in |
x |
| 64832 |
1 in |
1 3/16 in |
3/8 in |
1 1/16 in |
1/2–20 in |
5/16 x 1/4 in |
x |
| 64833 |
1 1/4 in |
1 1/2 in |
1/2 in |
1 3/8 in |
5/8–18 in |
5/16 x 7/16 in |
x |
| 64834 |
1 1/2 in |
1 7/8 in |
1/2 in |
1 7/16 in |
3/4–16 in |
3/8 x 7/16 in |
x |
| 64835 |
2 in |
2 1/2 in |
1/2 in |
1 7/16 in |
1–14 in |
1/2 x 5/8 in |
x |
| 64836 |
2 1/2 in |
3 1/8 in |
1/2 in |
2 in |
1–14 in |
1/2 x 5/8 in |
x |
Shell Mill Holder Drive Keys
| Part Number |
Pilot Dia. |
Dia. |
Dim. B |
Dim. C |
Stock |
| 64750 |
0.5 in |
0.25 in |
0.5 in |
0.12 in |
x |
| 64751 |
0.75 in |
0.312 in |
0.53 in |
0.15 in |
x |
| 64752 |
1 in |
0.375 in |
0.68 in |
0.18 in |
x |
| 64753 |
1.25 in |
0.5 in |
0.86 in |
0.25 in |
x |
| 64754 |
1.5 in |
0.625 in |
1.06 in |
0.31 in |
x |
| 64755 |
2 in |
0.75 in |
1.12 in |
0.38 in |
x |
| 64756 |
2.5 in |
1 in |
1.38 in |
0.5 in |
x |
Nose Piece Anchor

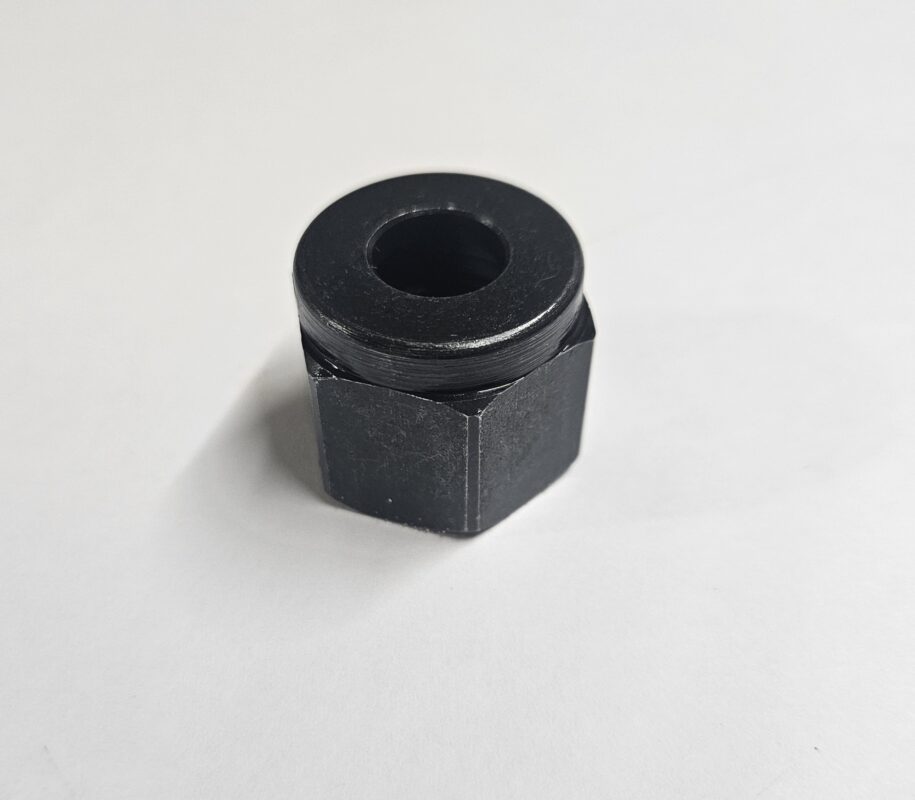

DA Collet Nose Holder Piece
| Part Number |
Collet Series |
Model |
Thread Size |
Hex or Flats |
Wrench |
Stock |
| 76441 |
#200 |
8 |
3/4–16 |
1 HEX |
64747 |
x |
| 76442 |
#100 |
8 |
1–14 |
1 1/4 HEX |
64708 |
x |
| 76443 |
#180 |
8 |
1 1/4–12 |
1 1/2 HEX |
64709 |
x |
DA Stub Nose Holder
| Part Number |
Collet Series |
Hex |
Model |
Thread Size |
Wrench |
Stock |
| 76430 |
300DA |
1/2 in |
4 |
7/16–32 |
64705 |
x |
| 76431 |
200DA |
3/4 in |
4 |
11/16–20 |
64706 |
x |
| 76432 |
100DA |
7/8 in |
4 |
15/16–20 |
64707 |
x |
| 76433 |
180DA |
1 1/4 in |
N/A |
1 3/16–20 |
64708 |
x |
Nuts Anchor
Collet Holder Hex Nut
| Part Number |
Collet Series |
Hex |
Stock |
| 76487 |
#100 SA |
2 1/4 in |
x |
| 76489 |
#075 SA |
1 7/8 in |
x |
E/R Clamping Nuts
| Part Number |
|
|
|
|
Stock |
| 84967 |
E/R 20 |
1.34 in |
34.04 mm |
Hex Style |
x |
| 84969 |
E/R 16 |
1.08 in |
27.42 mm |
Hex Style |
x |
| 85001 |
E/R 11 |
0.63 in |
16 mm |
Min Nut |
x |
| 85002 |
E/R 16 |
0.87 in |
22.09 mm |
Min Nut |
x |
| 85003 |
E/R 20 |
1.1 in |
27.94 mm |
Min Nut |
x |
| 85004 |
E/R 25 |
1.38 in |
35 mm |
Min Nut |
x |
| 85005 |
E/R 32 |
1.97 in |
50.03 mm |
E Stye Nut |
x |
| 85006 |
E/R 40 |
2.48 in |
62.99 mm |
E Stye Nut |
x |
| 85007 |
E/R 25 |
1.65 in |
41.91 mm |
E Stye Nut |
x |
Retention Knobs Anchor
| Part Number |
Thread Size |
O.A.L. |
Dim. B |
Dim. C |
Dim. E |
Dim. F |
Stock |
| 64723 |
M12-1.75 |
1.7 in |
0.43 in |
0.908 in |
0.71 in |
0.273 in |
x |
| 67751 |
5/8–11 |
1.5 in |
0.74 in |
0.64 in |
0.44 in |
0.49 in |
x |
Spanner Wrenches Anchor
Adjustable
| Part Number |
Pin Dia. |
Capacity |
Stock |
| 64879 |
1/4 in |
2 to 4 3/4 in |
x |
Non-Adjustable
| Part Number |
Use For |
Dia. |
Pin Dia. |
Stock |
| 64888 |
100 SA Collet Nut |
2 1/2 in |
9/32 in |
x |
| 64889 |
150 SA Collet Nut |
3 1/4 in |
21/64 in |
x |
